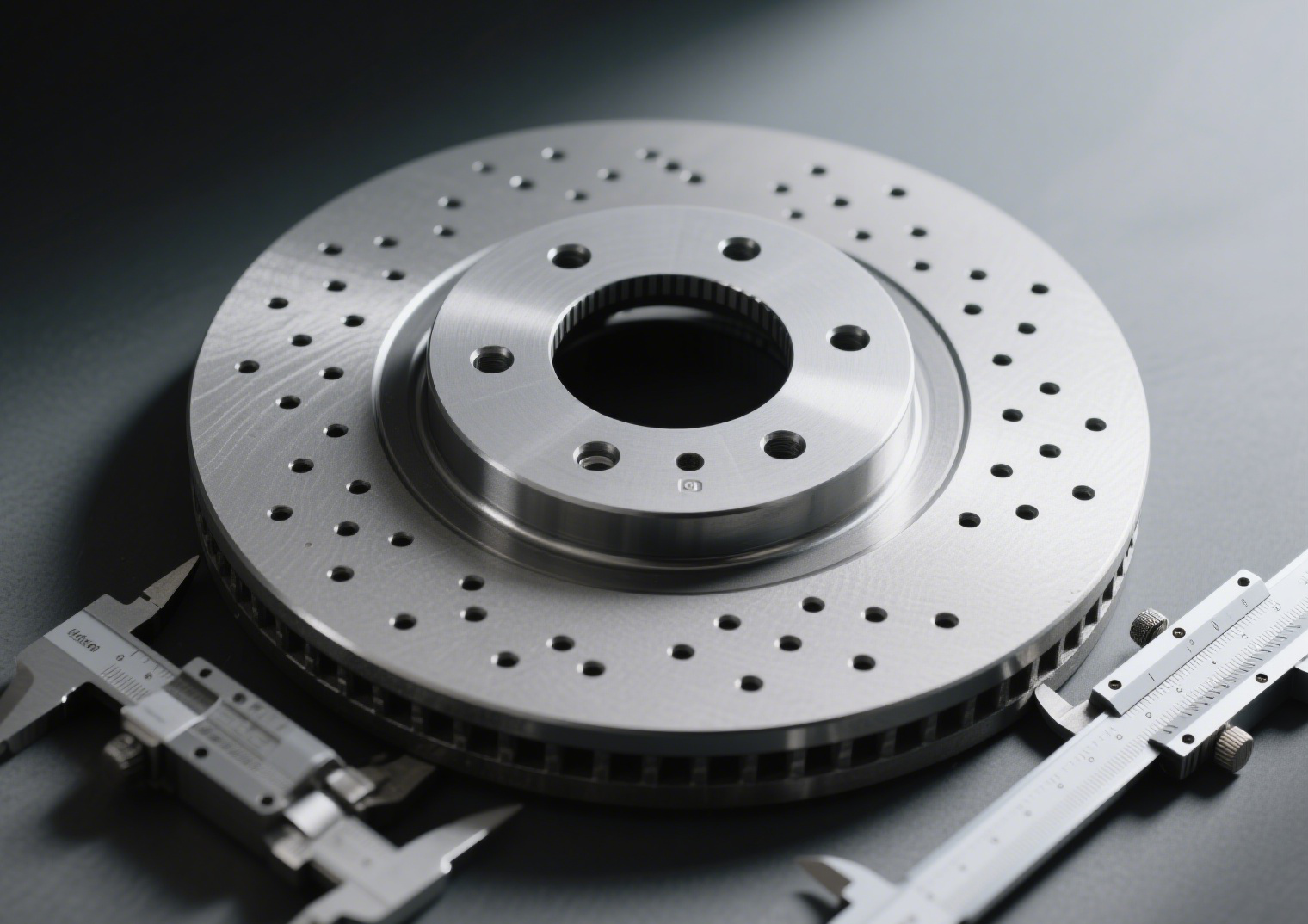

Brake Disc Drilling and Grooving: How to Improve Braking Performance

Drilling and grooving brake discs are key technologies for improving vehicle braking performance, particularly in high-performance vehicles, racing cars, and in situations involving frequent, high-intensity braking. Their core purpose is to optimize the frictional environment during braking, addressing issues such as thermal fade and brake squeal. This article will introduce specific improvement paths about brake discs.

1. Efficient Heat Dissipation to Alleviate Thermal Fade

During braking, the intense friction between the brake pad and the brake disc generates a significant amount of heat. If this heat cannot be dissipated promptly, the brake disc temperature rises sharply (even exceeding 800°C), causing thermal fade—a decrease in the pad's friction coefficient and a significant reduction in braking force.

• Drilling: The through-holes on the brake disc surface create "airflow channels." When the wheel rotates, air circulates rapidly through the holes, removing heat from the disc and reducing overall temperature.

• Grooving: The grooves break up the "heat accumulation layer" on the disc surface, reducing localized high-temperature areas. Furthermore, the airflow disturbances at the groove edges accelerate heat dissipation.

Combining these two methods significantly improves the brake disc's heat dissipation efficiency, delaying the onset of thermal fade and ensuring stability during sustained braking.

2. Remove Friction Impurities and Maintain Friction Efficiency

During braking, brake pad wear generates powder. If this accumulates between the brake disc and the pad, it forms an "isolation layer," reducing the friction coefficient and affecting braking force transmission.

• Grooving: The grooves act as "scrapers," scraping friction powder into the grooves and discharging it during relative motion between the brake pad and disc, preventing powder accumulation.

• Drilling: Some powder falls directly through the holes, reducing impurities on the disc surface.

This ensures consistent "clean" frictional contact between the pad and disc, maintaining stable braking force output.

3. Enhanced Water Film Breakdown Capability for Wet and Slippery Environments

In rainy conditions or on wet roads, water film easily forms on the brake disc surface, causing "slippage" between the pad and disc, known as water attenuation, which affects braking performance.

• Synergy between Grooving and Drilling: Grooving quickly breaks through the water film, allowing the brake pad to directly contact the disc, while drilling allows accumulated water to drain through the holes, reducing the rate at which water film re-forms. The combination of these two processes significantly improves wet braking reliability and shortens stopping distances in rainy conditions.

4. Reduces Braking Squeaks and Optimizes the Driving Experience

Squeaks and other unusual sounds during braking are often caused by excessively high friction vibrations between the brake pad and disc, especially during low-speed, light braking.

• Grooving: Grooves change the contact area and friction distribution between the pad and disc, breaking resonance and reducing the likelihood of abnormal squeals.

• Drilling: Holes disperse local stress, reducing rigid vibrations on the friction surface and helping to suppress abnormal squeals.

5. Extends Component Life and Balances Wear

In addition to directly improving braking performance, drilling and grooving also have a positive impact on the durability of brake discs and pads:

• For brake discs: Traditional solid brake discs are susceptible to localized stress concentrations due to uneven heat distribution under long-term, high-intensity friction, leading to cracks or deformation. Drilling and grooving can reduce this risk by dissipating heat and reducing the accumulation of thermal stress. Grooves, in particular, act as "stress relief channels," providing a buffer when the disc expands due to heat or contracts due to cooling, thereby extending its service life.

• For brake pads: Even wear is key to stable braking. Drilling and grooving can reduce the time it takes for the brake pad to fully adhere to the disc, preventing excessive wear or "biased wear" in certain areas caused by prolonged heavy pressure and high temperatures. For example, grooves can help the brake pad wear more evenly when scraping powder, while drilling can reduce the sustained friction pressure at specific points, resulting in more balanced wear across the entire pad and indirectly extending the replacement cycle.

6. Process Suitability for Scenarios

It's important to note that drilling and grooving aren't suitable for all scenarios. Racing cars and high-performance sports cars often employ high-density cross-grooving and multi-row drilling. Grooves are 1.5-2mm deep and arranged in a spiral pattern to quickly scrape away wear debris from the brake pads. Drill holes are 3-5mm in diameter and densely packed, enhancing airflow and reducing brake temperatures by 50-100°C, ideal for the extreme demands of continuous high-speed braking. Off-road vehicles prioritize preventing mud and sand clogging, employing wide, shallow grooves (8-10mm wide) and large-diameter holes (6-8mm) to prevent accumulation of debris on muddy roads, which can affect friction. Family cars, designed for practicality, typically employ shallow (≤0.5mm) single-row grooves or sparse drilling (≤2 holes per 10cm²), or even maintain a smooth disc surface. This preserves sufficient friction area for basic braking force while reducing manufacturing costs and maintenance. Because new energy vehicles share the load through regenerative braking, the technology focuses on making more lightweight and low dust brake disc , and often uses fine shallow grooves combined with ventilation structures to balance the synergy of heat dissipation and energy recovery.

The drilling and grooving process for brake discs is not simply a "physical modification." Instead, it comprehensively improves the operating environment of the brake system through multiple dimensions, including enhanced heat dissipation, impurity removal, water film removal, vibration suppression, and life extension. Its ultimate goal is to maintain efficient friction between the brake pad and disc under high-intensity and complex operating conditions, improving the stability, continuity, and safety of braking force. This technology is a standard feature of high-performance braking systems.Our company's brake discs have refined drilling and grooving technology, striving to make safe and precise  brake discs and other brake parts, ensuring that you are protected during driving.Welcome to visit our website:https://www.evfriction.com to learn more information about brake parts.And our phone nubmer is +86-13363216781,or you can email us by jessicabrakes12@gmail.com.
