The clutch is a core component of a manual transmission vehicle's transmission system, responsible for cutting and transmitting engine power. Its performance directly impacts shifting smoothness and driving safety. The condition of key components such as the clutch plate, clutch cover, and pressure plate determines the clutch's lifespan. This article will introduce a comprehensive maintenance guide based on the characteristics of these core components.

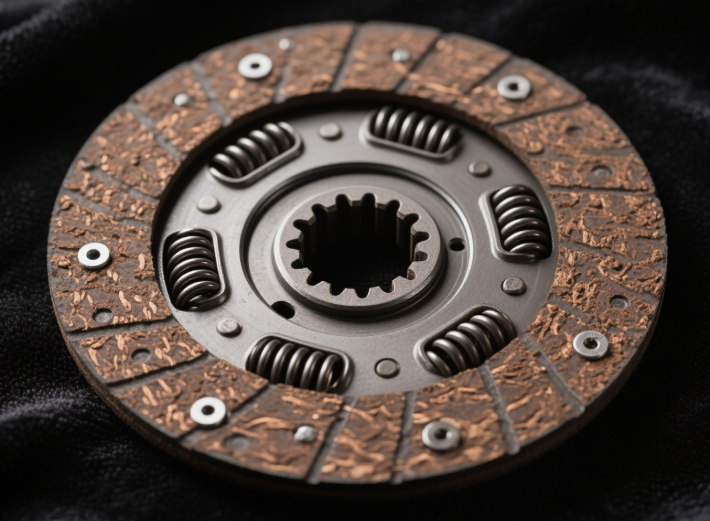

The clutch plate is the "friction core" of the clutch, transmitting power through friction with the pressure plate and flywheel. Long-term use can easily lead to wear due to heat and slippage.
Avoid driving in a partially clutched position for extended periods (such as moving slowly with the clutch engaged in traffic). Constant friction between the clutch plate, pressure plate, and flywheel generates significant heat, accelerating surface wear and even causing plate burn (carbonization and a burning smell).
Avoid suddenly lifting the clutch when starting. The sudden impact can cause intense friction between the clutch plate and flywheel, causing "slippage." Long-term use can lead to grooves and cracks on the clutch plate surface. Release the clutch pedal promptly after shifting gears to avoid leaving your foot on the pedal for extended periods (unintentionally applying pressure), which can cause the clutch plate and pressure plate to become partially disengaged, increasing unnecessary wear.
Wear assessment and replacement:
If you experience shifting jerks, weak starts, unusual noises when pressing the clutch (such as a "scratching" sound), or delayed power transmission after releasing the clutch, the clutch plate may be excessively worn (normal thickness is approximately 10-15mm; wear of 3-5mm requires replacement). Check and replace the clutch plate promptly to prevent wear debris from damaging the flywheel and pressure plate.
When starting on a slope, avoid prolonged "half-clutch" struggles (especially when heavily loaded). Use the parking brake to assist in reducing the clutch plate's sliding friction under high load. After wading through water, if the clutch plate is wet, gently apply the accelerator and slowly release the clutch to use frictional heat to dry out the moisture and prevent slipping.

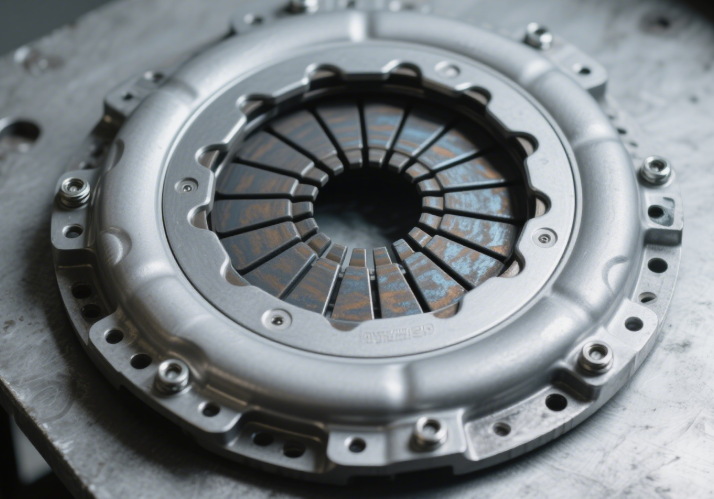

The clutch cover is the housing that secures the pressure plate. The diaphragm spring or coil spring inside provides pressure to the pressure plate, ensuring a tight engagement between the clutch plate and the flywheel.
When starting with a heavy load (such as climbing a hill with a full load), forcibly engaging the clutch with a hard throttle can cause the pressure plate to experience instantaneous excessive torque, potentially deforming the clutch cover, breaking the diaphragm spring, or scratching or denting the pressure plate surface.
When the vehicle is stuck in mud or sand, avoid frequent partial clutch engagement to escape. High temperatures and impact can loosen the bolts connecting the clutch cover and pressure plate, even causing the cover to crack.
During maintenance, check the clutch cover for deformation or cracks, the pressure plate surface for flatness (if there is oil stains or burn marks, it may be due to oil seal leakage and contamination, requiring simultaneous replacement of the crankshaft oil seal), and the uniform elasticity of the diaphragm spring (if a section of the spring fails, uneven pressure on the pressure plate can result in shifting shudder).
After replacing the clutch cover or pressure plate, ensure a tight fit between the parts and the flywheel mounting surface. Perform a dynamic balancing test if necessary. Misalignment during operation will cause centrifugal force deviation, exacerbating wear on the bearings and journals.
The release bearing is installed inside the clutch cover and pushes the pressure plate via the shift fork to disengage the clutch. Its condition directly affects shifting feel.
The release bearing relies on grease for operation. If it is chronically lacking grease, it can produce a "squeaking" noise (noticeable when the clutch is pressed). In severe cases, the bearing can become stuck, leading to incomplete disengagement (gear clacking during shifting). It is recommended to check the lubrication status every 60,000 kilometers and add a special high-temperature grease (avoid using ordinary butter, which can easily lose its effectiveness at high temperatures).
Avoid excessive force or "hard-engaging" when shifting. This can cause uneven force on the shift fork, leading to bending and deformation, resulting in misaligned contact between the release bearing and the pressure plate, exacerbating wear on both. If you notice abnormal pedal travel during shifting (too light or too heavy), check the shift fork for deformation.
The connection between the shift fork and the fork shaft uses a bushing or shaft. Long-term use can easily wear out, leading to excessive clearance, manifesting as increased clutch pedal play. Graphite grease can be applied regularly to reduce wear. If the clearance exceeds 1mm, the bushing should be replaced promptly to prevent the shift fork from binding.
Every time you replace the clutch plate, clean the clutch cover, pressure plate, and flywheel of oil, dirt, and debris (using a dedicated cleaning agent) to prevent uneven friction caused by impurities. Inspect the flywheel ring gear for chipped or missing teeth. If severely worn, replace it immediately. Otherwise, it may affect starter engagement.
When replacing parts, select original or certified aftermarket parts for the clutch plate, pressure plate, and clutch cover that match the vehicle model. (Inconsistent materials and dimensions can reduce power transmission efficiency and even pose a safety hazard.) For example, diesel vehicles, due to their high torque, require higher-strength metal-based clutch plates, which are not compatible with gasoline vehicles.
Develop a habit of "quickly pressing and releasing" the clutch to reduce half-clutch time. When idling for extended periods while parked, it's recommended to shift the vehicle into neutral and release the clutch to avoid prolonged pressure on the clutch plate. When shifting, ensure the vehicle speed matches the gear (e.g., shifting into a lower gear at low speed) to minimize indirect damage to the clutch caused by gear impact.
Clutch maintenance is all about reducing unnecessary friction and impact. By improving driving habits and conducting regular inspections, you can effectively extend the life of components like the clutch plate and clutch cover, ensuring smooth shifting and efficient power transmission, providing a fundamental guarantee for driving safety.If you want to know more about clutch and other brake parts, you can browse our website:https://www.evfriction.com. We provide the latest brake system knowledge andhigh-performance clutch plates,clutch covers and other brake parts.Our phone number is +86-13363216781,or you can email us by jessicabrakes12@gmail.com.
