Clutch plate slippage is a common problem in manual transmission vehicles, manifesting as power interruption or reduction. If not addressed promptly, it can lead to clutch plate burnout, engine overload, and other problems. This article will help you quickly determine clutch plateslippage and its cause, including the symptoms, diagnostic steps, and identification methods.
The core of clutch plate slippage is "the engine revving but the vehicle speed is stagnant or slow." Preliminary diagnosis can be made by the following scenarios:
Starting: When the accelerator is pressed, the engine rpm surges, but the vehicle accelerates slowly, and there may even be a burning smell (similar to burning paper) from the clutch plate friction.
Climbing a hill or when heavily loaded: Deeply pressing the accelerator causes the engine to roar and rpm to increase, but the vehicle's body feels weak, making climbing difficult or even slowing down.
After shifting: Shifting into a higher gear and pressing the accelerator, the rpm increases rapidly, but the vehicle speed lags behind, and the power feels "unsteady."
Accelerating rapidly: When the accelerator is fully pressed, the tachometer needle jumps rapidly, while the speedometer responds slowly, with the two increasing at different speeds.
No specialized tools are required; the following three practical methods can accurately diagnose the problem:
Procedure: Stop the vehicle, apply the handbrake, shift the vehicle into neutral, depress the clutch pedal, and accelerate to 3000 rpm before releasing the clutch (holding the accelerator).
Symptom: If the rpm drops rapidly, the clutch plate is normal. If the rpm drops slowly or remains almost constant, accompanied by an unusual friction noise, the clutch plate is most likely slipping (not firmly engaging the flywheel).
Procedure: Park the vehicle on a slope with a gradient of at least 15°, engage first gear, apply the handbrake, and slowly release the clutch until it reaches a partially engaged state (slight vehicle tremor). Release the brake.
Symptom: If the vehicle remains stable on the slope, the clutch is normal. If the vehicle slides down and the engine rpm increases, the clutch plate is slipping (insufficient friction, unable to transmit sufficient power to overcome the slope's resistance).
Procedure: Engage 5th gear (or highest gear) and observe the tachometer at a steady speed of 60 km/h. Compare the tachometer to the "60 km/h corresponding speed" indicated in the vehicle manual (e.g., the manual states 60 km/h corresponds to 2000 rpm, but the actual speed is over 2500 rpm).
Symptom: The actual speed is significantly higher than the standard value, indicating significant power transmission loss and clutch slippage.
Clutch slippage can be confused with other component failures and should be carefully distinguished:
Difference from incomplete clutch disengagement: Incomplete disengagement manifests as gear rattling and difficulty engaging gears, while slippage occurs when gear engagement is normal but power is insufficient. This can be identified by checking whether shifting is smooth.
Difference from transmission failure: Wear on transmission gears can cause power interruption, but is often accompanied by unusual shifting noises or gear sticking. In contrast, slippage produces no unusual transmission noises, and the speed simply does not match the vehicle speed.
The difference between this and underpowered engines: Engine problems (such as missing cylinders or carbon deposits) can cause the engine speed to decrease simultaneously with vehicle speed. During skidding, the engine speed will normally increase, but the vehicle speed will not keep up.
After confirming skidding, the following causes can be investigated:

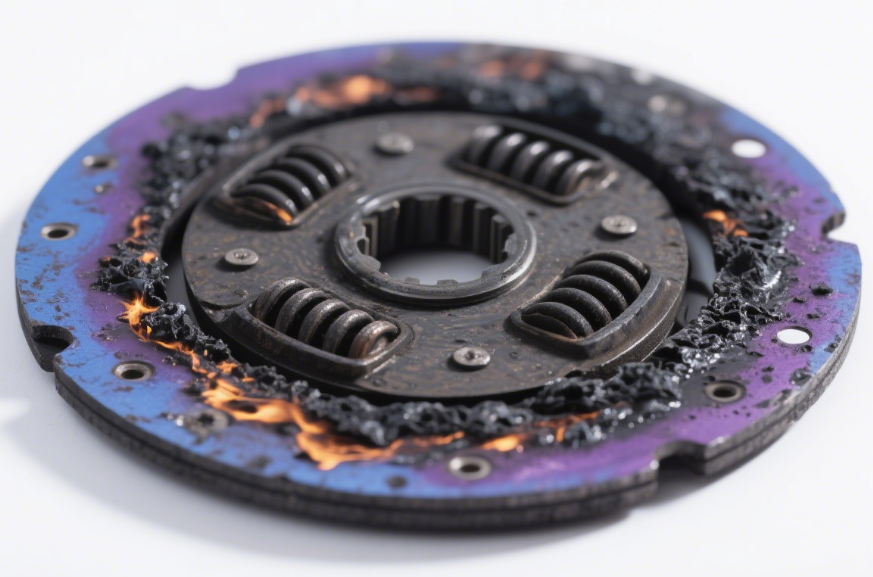

Excessive Clutch Plate Wear: The friction plate thickness is less than 3mm (normal is approximately 10-15mm), and the surface is carbonized and grooved. The clutch plate needs to be replaced.
Pressure Plate Spring Failure: The diaphragm spring or coil spring inside the clutch cover has weakened, resulting in insufficient pressure on the pressure plate and an inability to compress the clutch plate. The pressure plate or clutch cover assembly needs to be replaced.
Seized Release Bearing: The release bearing cannot fully return, causing the clutch plate and pressure plate to remain in a semi-disengaged state. Check the bearing lubrication and shift fork condition.
Oil Contamination: Leaking crankshaft or transmission oil seals can cause the clutch plate surface to become soaked with oil, reducing the friction coefficient.
Avoid pressing the accelerator hard in a half-clutch state when starting. At this time, the clutch plate and the pressure plate are in sliding friction, which can easily cause the plate to overheat and carbonize. It is recommended to slowly lift the clutch to the engagement point and then steadily apply oil. When shifting gears, the clutch pedal must be pressed to the bottom to ensure complete disengagement before shifting gears. Shifting gears with the clutch half-depressed will cause a double impact on the gear and clutch plate. In congested road conditions, reduce long-term half-clutch "creeping" and switch to neutral to coast for a short break to reduce the continuous friction load on the plate.
Check the clutch pedal free travel every 20,000 kilometers and regularly observe the clutch oil condition (hydraulic clutch). If it is turbid or the oil level drops, it needs to be replaced in time and the leak point should be checked to avoid affecting the engagement accuracy due to insufficient oil pressure.
If there is a shift jerk, poor acceleration, body shaking at idle, or a burning smell while driving, it may be that the clutch plate is worn excessively or the pressure plate elasticity has declined. If problems such as heavy pedals and incomplete separation are found, they should be repaired immediately to avoid the plate rivets rubbing against the pressure plate and causing further damage.
Avoid frequent driving on muddy or flooded roads to prevent mud and sand from entering the clutch housing and wearing out the plate. Long-term overloaded driving is strictly prohibited. Excessive load will aggravate clutch plate slippage and shorten its service life. After parking, make sure to shift to neutral before applying the handbrake to avoid the clutch plate being under stress for a long time in a semi-engaged state.
Resolve the leak before replacing the clutch plate. The key to diagnosing clutch plate slippage is identifying the asynchrony between the engine speed and vehicle speed. This can be quickly identified through scenarios like starting, climbing a hill, and gear testing. Factors such as wear, pressure, and oil contamination can then be considered to identify the cause. Prompt action not only restores power but also prevents further failures (such as flywheel damage caused by plate burnout), ensuring driving safety and a better driving experience.At the same time, you should also pay attention to maintaining the clutch plate during daily driving to maximize the advantages of the car's braking system and ensure driving safety and experience.

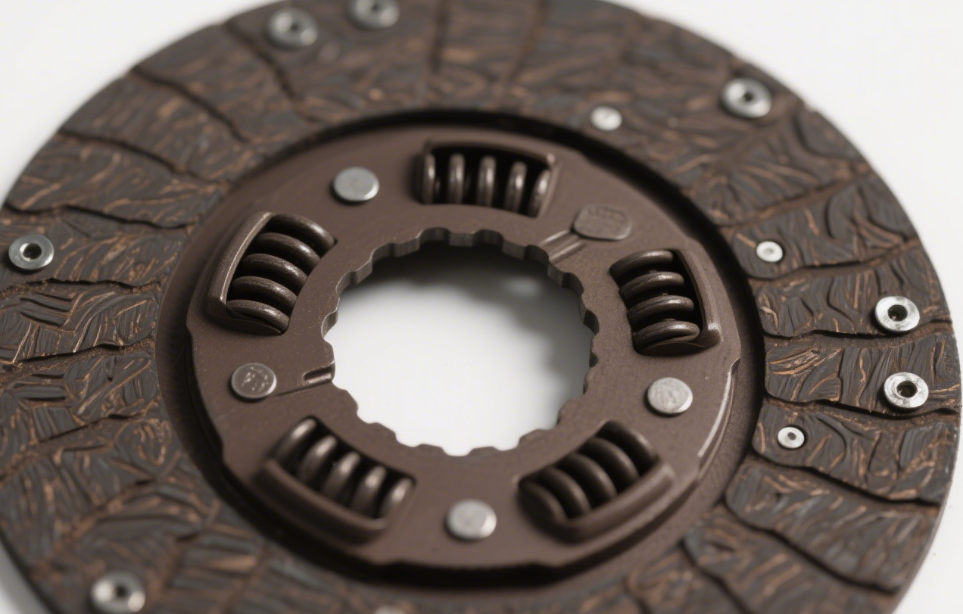

When replacing the clutch plate, you should also pay attention to purchasing high-performance clutch parts, and do not choose low-quality ones for the sake of cheapness. Therefore, you can take a look at the clutch plates and other related brake parts produced by our company. We are a reliable and experienced brake parts supplier. You can learn more about us by browsing our website:https://www.evfriction.com, or you can contact us by phone +86-13363216781 or email jessicabrakes12@gmail.com.
