Analyzing The Automotive ABS System: The Safety Mechanism Behind Brake Pedal "Bounce"

Many car owners have experienced a "bounce" vibration and a clicking sound on the brake pedal during sudden braking. This is actually the vehicle's ABS system at work. This phenomenon is closely related to the working principle of ABS, and its braking effectiveness is closely related to the performance of brake components such as the brake pads and brake drum. Below, we will explain in detail the working principle of ABS, the causes of "bounce," and its interaction with the braking components.

1. What is ABS? Its Core Function is "Anti-lock Braking"

ABS, or Anti-lock Braking System, is a standard feature of vehicle active safety. Its core function is to prevent the wheels from completely locking during sudden braking through electronic control, ensuring that the wheels maintain a "rolling and braking" state.

If the wheels lock (come to a complete stop), the friction between the tires and the road changes from "rolling friction" to "sliding friction." This not only increases braking distance but can also cause the vehicle to lose steering control (losing steering wheel control), and even lead to dangerous situations such as skidding and drifting on slippery roads. ABS, on the other hand, controls braking force through high-frequency "tap braking," maximizing braking effectiveness while allowing the driver to retain steering control and avoid danger in a timely manner.

The ABS system boasts exceptional technical precision, with its control unit capable of assessing wheel status and adjusting braking force within milliseconds. This means that during the instant of emergency braking, the system has already completed multiple increases and decreases in brake pressure, providing a strong technical guarantee for vehicle safety.

2. Causes of "Bounce" During Sudden Braking: ABS's High-Frequency "Tap Braking"

The "bounce" and vibration experienced during sudden braking are a direct reflection of the ABS system's high-speed operation. The detailed process is as follows:

First, sensors monitor risk. Wheel speed sensors monitor wheel speed in real time. When sudden braking causes a sudden drop in wheel speed (imminent locking), they immediately send a signal to the ABS control unit (ECU). These sensors act like the vehicle's "nerve endings," accurately capturing dynamic changes in the wheels.

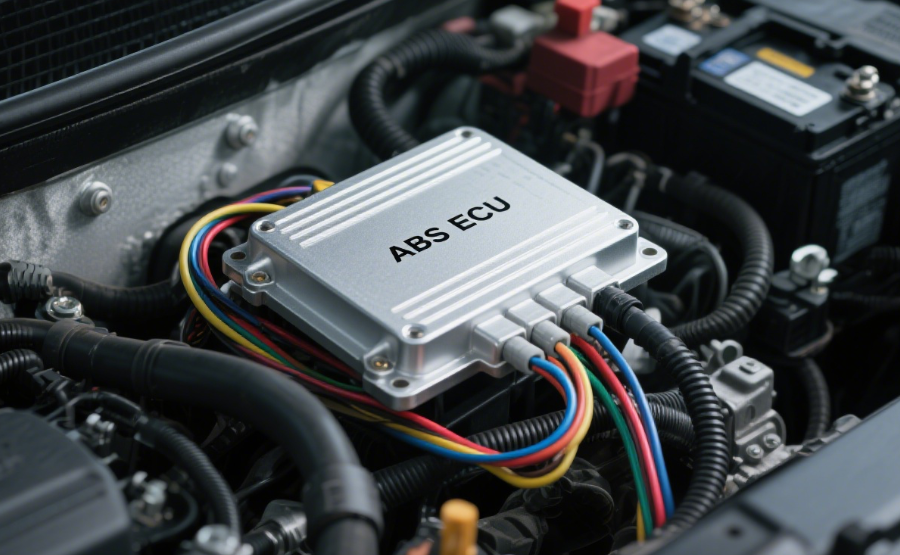

Next comes the ECU's rapid command. The control unit calculates the optimal braking frequency within milliseconds and instructs the brake cylinder to "rapidly release and apply the brakes" (repeated 10-30 times per second), effectively automatically performing high-frequency "tap braking." During this process, the ECU must process a large amount of data to ensure the accuracy and timeliness of the braking commands.

Finally, the pedal transmits vibrations. The high-frequency movement of the brake cylinder is transmitted to the brake pedal through the brake lines, creating a "bouncing" feel and a "clicking" sound due to mechanical friction. This "bouncing" is a sign of proper system operation, indicating that the ABS is preventing wheel lock, not a brake malfunction.

3. The Relationship Between ABS, Brake Pads, and Brake Drums: The "Executors" of Braking Effect

The ABS is the "commander," while the brake pads and brake drum (or disc) are the "executors." Their coordinated operation ensures stable braking.

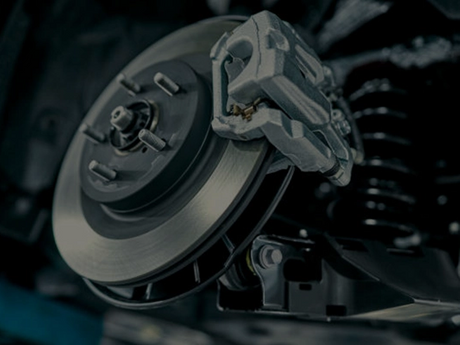

As direct friction components, the brake pads must rapidly contact and separate from the brake disc(for disc brakes) or brake drum (for drum brakes) during high-frequency ABS braking. High-quality brake pads must possess high-temperature resistance (to withstand the high temperatures generated by frequent friction) and a stable coefficient of friction (to ensure uniform braking force with each brake application). Failure to do so may result in inconsistent braking performance and unusual noises. Over time, brake pads gradually wear, so their thickness should be checked regularly.

In a drum brake system, the brake drum acts as the brake pad's "friction partner," generating braking force through contact with the drum's inner wall. When ABS is operating, the brake drum must withstand the high-frequency impact of the brake pads, requiring it to possess extremely high rigidity and wear resistance. Deformation or uneven wear on the brake drum can cause ABS braking to vibrate, affecting braking stability. Furthermore, the brake drum's heat dissipation performance can also affect braking effectiveness, and overheating can lead to brake failure.

Simply put, precise ABS control relies on the stable performance of both the brake pads and the brake drum (or disc). Substandard performance in any of these components can impair ABS effectiveness.

4. What to Do When You Experience Pedal Bounce?

When sudden braking triggers ABS and you feel pedal bounce, it's crucial to continue applying the brakes with full force while steering as needed. Releasing your foot will interrupt the ABS's high-frequency braking, resulting in a decrease in braking force, increased stopping distance, and increased accident risk. Maintaining a steady pedal pressure allows the system to continuously adjust braking force for optimal braking effectiveness. During this process, the driver must remain calm and avoid panicking due to pedal jitter. Correct operation ensures safe driving.

5. Daily Maintenance: Ensure Seamless Cooperation between ABS and Braking Components

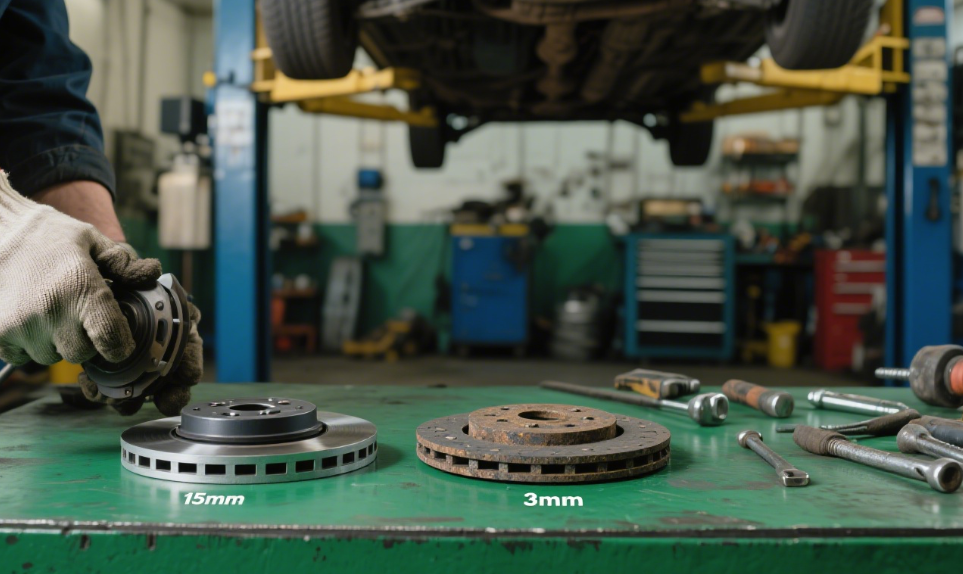

Regularly inspect brake pads and replace them when they are worn to less than 3mm. This prevents insufficient braking force due to thin pads, which can affect ABS control accuracy. During inspection, you can also observe pad wear to identify other issues with the brake system.

Pay attention to the condition of the brake drum. If unusual noises, overheating, or slipping occur during braking, inspect the drum for deformation or excessive wear, and repair or replace it if necessary. Brake drum maintenance not only affects braking effectiveness but also the vehicle's ride smoothness. Avoid using inferior components. Low-quality brake pads (e.g., those containing excessive impurities) or brake drums (with uneven materials) can lead to unstable friction coefficients, interfere with ABS's precise control, and significantly increase safety risks. When replacing brake parts, always choose qualified products from reputable manufacturers; avoid using inferior parts to save costs.

In addition, you can regularly inspect the ABS system using specialized equipment to check the operating condition of components such as sensors and control units to ensure proper system operation. Maintaining clean and sufficient brake fluid is also crucial, as its quality and quantity affect the pressure transmission in the braking system.

ABS is a "safety guard" that prevents wheel lock. "Bouncing" during sudden braking is a normal manifestation of high-frequency braking. The performance of components such as brake pads and brake drums, which are the "executors" of braking, directly affects ABS efficiency. Maintaining the condition of these components during routine maintenance ensures that ABS can fully function at critical moments and ensure driving safety. Every car owner should understand the working principles and maintenance of the ABS system to ensure optimal braking performance at all times.Remember: Do not choose low-quality brake parts for cheapness, otherwise you cannot guarantee driving safety and experience. If you want to replace adurable and wear-resistant brake part, welcome to visit our website:https://www.evfriction.com.  And you can call us directly.Our phone number is +86-13363216781.And our email is jessicabrakes12@gmail.com.
