Clutch Structure And Working Principle

In the powertrain of a manual transmission vehicle, the clutch plays a crucial role as a "power switch," connecting or disconnecting power between the engine and transmission. Understanding the clutch's structure and working principles not only helps drivers operate their vehicles better but also allows them to quickly identify the problem when a malfunction occurs.

I.Clutch Basic Structure: Four Core Components Working Together

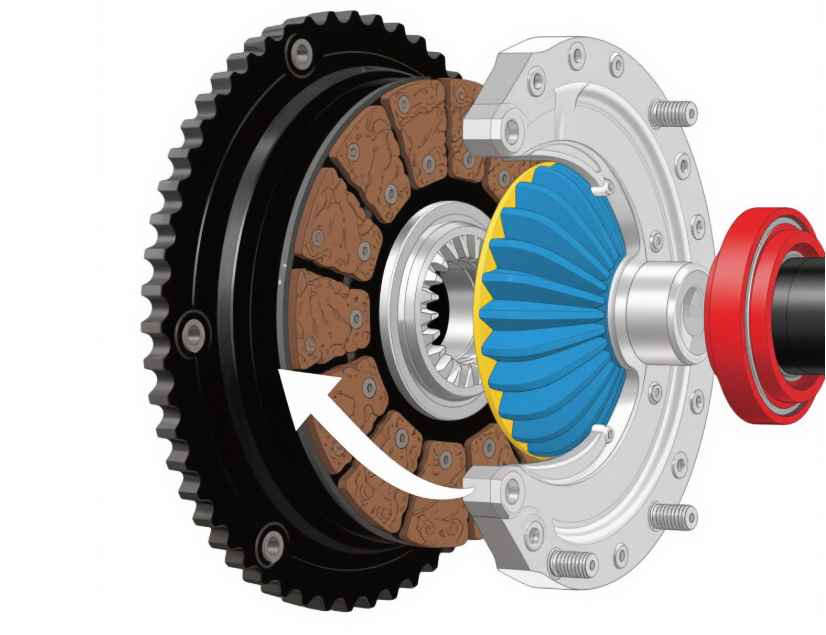

A clutch consists of four main parts: the active section, the passive section, the clamping mechanism, and the operating mechanism. Each component has a distinct function and works together to connect and disconnect power:

1. Active Section: Rotates with the engine

• Flywheel: Rigidly connected to the engine crankshaft, it rotates with the engine and serves as the clutch's power input. The flywheel's surface is typically machined to be very smooth, allowing it to contact and transmit power to the passive section.

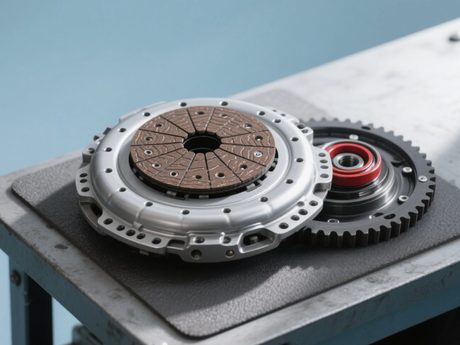

• Clutch Cover: Fixed to the flywheel, it houses a clamping mechanism and is bolted to the flywheel, rotating synchronously with it.

2. Active Section: Transmits power to the transmission

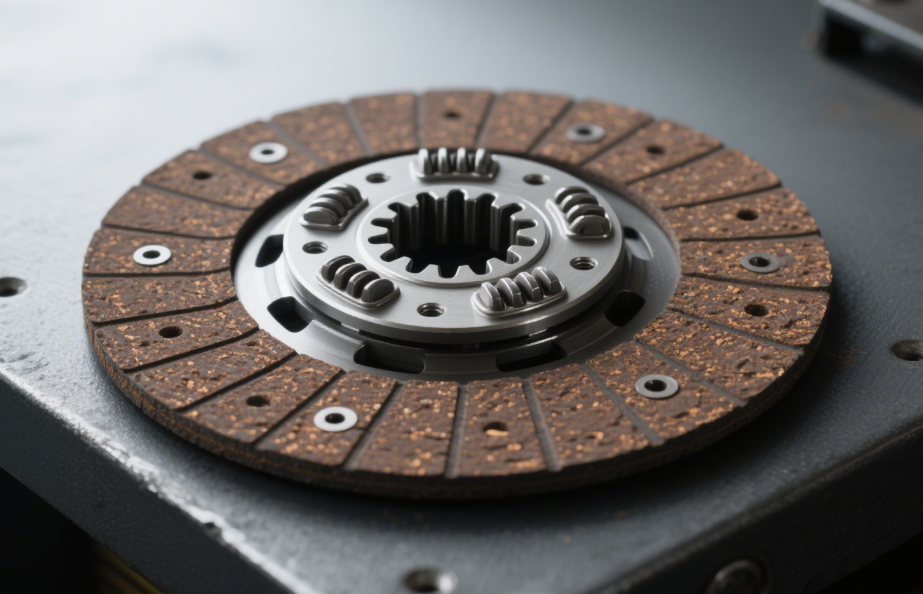

Driven Disc: Also known as the clutch plate, this is the clutch's core friction component, consisting of a steel plate, friction plate, and splined hub. The friction plate is made of high-temperature and wear-resistant materials (such as asbestos-based or ceramic) and transmits power through friction with the flywheel and pressure plate. The spline hub is splined to the transmission input shaft and can move axially along the input shaft.

3. Clamping Mechanism: Ensures tight power engagement

• Pressure Plate: Located on the other side of the driven plate, it is connected to the clutch cover via an elastic element (such as a diaphragm spring or coil spring). In its natural state, the pressure plate is pressed against the driven plate by a spring, ensuring a tight fit between the driven plate and the flywheel, allowing power to be transmitted from the flywheel to the driven plate.

• Diaphragm/Coil Spring: The core of the clamping mechanism. The diaphragm spring acts as both a clamping and release lever (a more compact structure and currently widely used), while the coil spring uses its elastic force to press the pressure plate against the driven plate, ensuring power engagement.

4. Operating Mechanism: Controls clutch engagement and disengagement

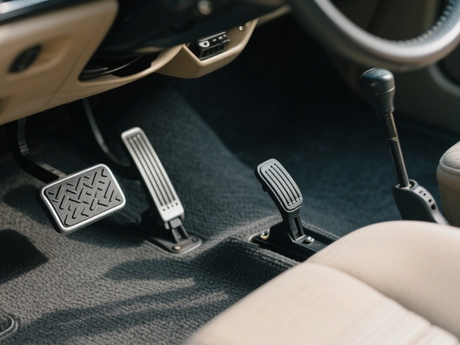

• Clutch Pedal: Located in the cockpit, the driver directly operates the clutch.

• Release fork and release bearing: The release fork is mounted on the transmission housing. One end is connected to an operating lever or hydraulic line, and the other end pushes a release bearing. The release bearing is mounted on a sleeve on the transmission input shaft and is axially movable, pushing a diaphragm spring or release lever to disengage the pressure plate from the driven plate.

• Hydraulic/mechanical transmission: Mechanical transmissions connect the pedal to the release fork via a lever or cable. Hydraulic transmissions consist of a master cylinder, a slave cylinder, and pipes, transmitting force via hydraulic fluid, making operation easier. Most current models use a hydraulic system.

II.Clutch Operating Principle: Dynamic Switching Between "Engaged" and "Disengaged"

The core function of a clutch is to transmit power on demand. Its operation can be divided into two states: engaged and disengaged

1. Engaged (Normal Driving)

When the driver does not depress the clutch pedal, the spring in the pressure mechanism is naturally extended. The spring force presses the pressure plate tightly against the driven plate, ensuring a tight fit between the driven plate, the flywheel, and the pressure plate.

Engine power is transmitted through the flywheel to the driven plate, then through the driven plate's splined hub to the transmission input shaft, ultimately driving the wheels through the transmission, drive shaft, and other components. The vehicle then drives normally.

2. Disengaged State (Shifting or Starting)

When the driver depresses the clutch pedal, the clutch mechanism begins operating: Pedal force is transmitted via hydraulic or mechanical transmission to the release fork, which pushes the release bearing forward, pressing against the diaphragm spring (or release lever).

The diaphragm spring deforms under the force, moving the pressure plate backward, releasing the pressure on the driven plate and separating it from the flywheel and pressure plate. At this point, engine power cannot be transmitted to the transmission, and the transmission is in "idle" mode, allowing smooth shifting or starting.

3. Semi-clutched State (Starting or Following at Low Speed)

Semi-clutched is a transitional state between engaged and disengaged: The driver lightly depresses the pedal, partially releasing the pressure of the pressure plate on the driven plate. A certain gap exists between the driven plate, flywheel, and pressure plate, resulting in low friction.

At this point, engine power is partially transferred to the transmission, allowing the vehicle to slowly start (preventing engine stalling) or achieve smooth deceleration when following a vehicle at low speeds. This is a core skill in manual transmission driving.

III.The clutch's key role: ensuring smooth and safe driving.

• Ensuring smooth shifting: During shifting, the clutch disengages power, allowing the gears in the transmission to shift freely and avoiding the shock caused by forced engagement.

• Ensuring smooth starts: During starting, power is gradually transferred through partial clutching, allowing the vehicle to accelerate slowly from a standstill and preventing the engine from stalling due to sudden force.

• Preventing transmission system overload: When the vehicle brakes suddenly or encounters excessive resistance, the clutch friction plates slip, cushioning the impact and protecting the engine, transmission, and other components.

IV. Summary: The clutch is a "smart valve" for power transmission.

Through its simple yet sophisticated structural design, the clutch enables flexible power transfer between the engine and transmission, making it an indispensable core component in manual transmission vehicles. Its core operating principles are "friction transmission" and "force control." By operating the pedal, the pressure of the pressure plate on the driven plate is varied, enabling power engagement, disengagement, or partial clutching. Understanding the clutch's structure and principles can help drivers operate it more effectively (e.g., avoiding extended periods of partial clutch engagement and reducing clutch slippage), thus extending its service life. During daily use, if problems such as unusual clutch noise, slippage, or incomplete clutch disengagement occur, prompt inspection and repair are necessary to ensure reliable power transmission and driving safety.
