For manual transmission owners, the clutch is the heart and soul of the driving experience—smooth starting, smooth shifting, and even the vehicle's lifespan are all crucial. However, many owners' understanding of the clutch is limited to simply "pressing the clutch to shift gears," overlooking its operating principles and detailed maintenance. The following is essential clutch knowledge for manual transmission owners, covering everything from structure and operation to troubleshooting and maintenance, to help you thoroughly understand this critical component.
The clutch's core function is to "switch the power connection" between the engine and transmission. Its structure determines how it operates:

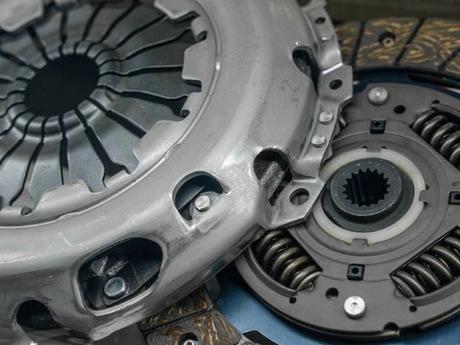

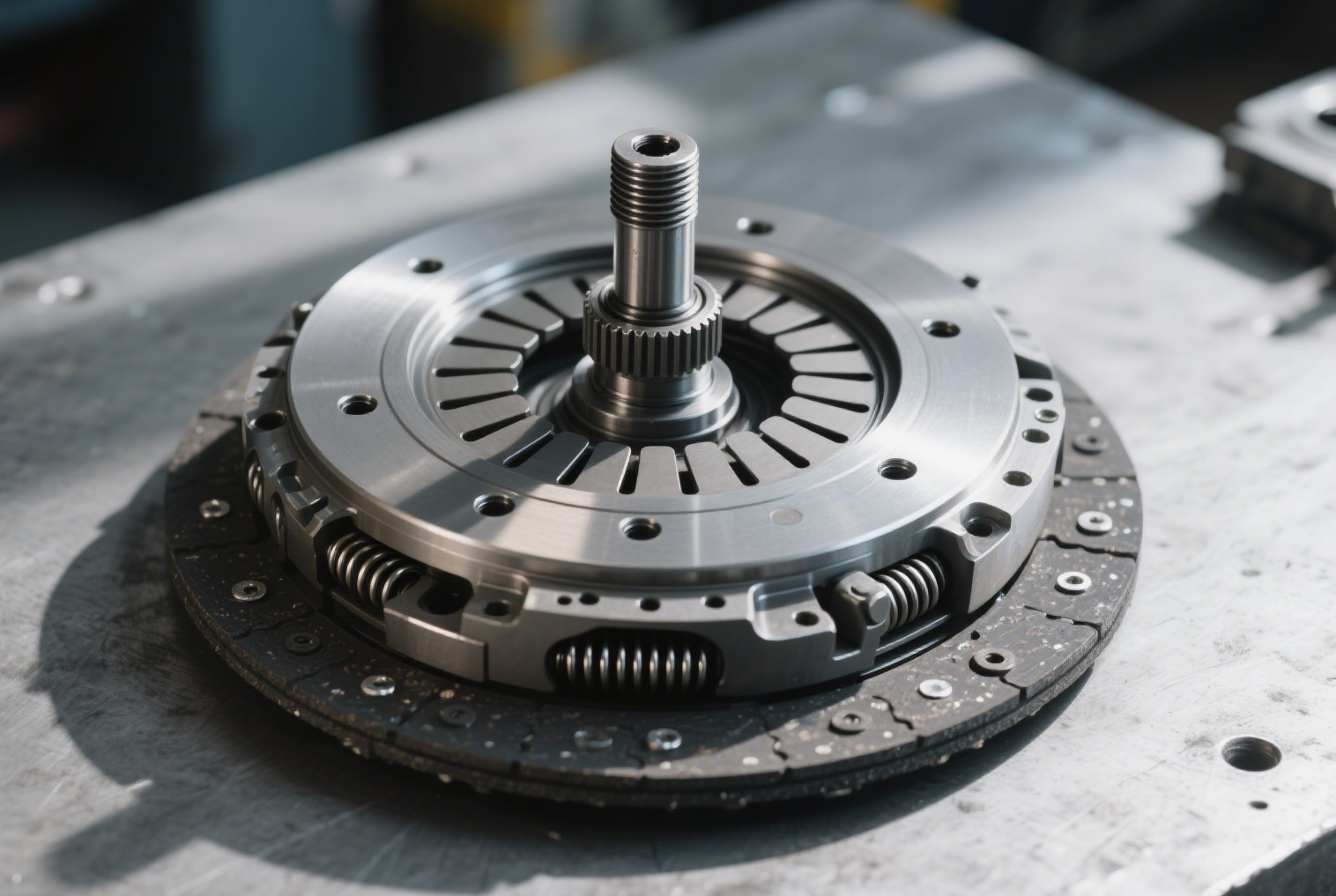

Driving part: Flywheel (connected to the engine crankshaft and rotates with the engine) and Pressure Plate (loaded against the flywheel by a spring).
Driven part: Clutch Disc (sandwiched between the flywheel and pressure plate, connected to the transmission input shaft via a spline).
Control Components: Release Bearing, Release Fork, and Clutch Pedal (mechanically or hydraulically controls the tension of the pressure plate).
How it works:
When the pedal is not pressed, the pressure plate, acting under spring force, compresses the clutch plate. Power from the flywheel is transferred to the clutch plate through friction, and then to the transmission (power is engaged, allowing the vehicle to start).
When the pedal is pressed, the release bearing pushes the pressure plate loose, separating the clutch disc from the flywheel and cutting power (allowing shifting or starting).
Simply put, the clutch acts like a "power transmission switch." Pressing it disconnects it, and releasing it engages it, allowing the engine and transmission to work smoothly together.
Improper operation is the main cause of premature clutch damage. Mastering the following techniques can extend its life:
Half-engagement is a state of "partial contact" between the clutch disc and the flywheel (slight vehicle vibration and slightly reduced rpm). At this point, power is being transferred but not fully engaged.
Correct method: Slowly release the clutch. When you feel the vehicle shake, lightly press the accelerator (maintaining the rpm between 1000-1500 rpm). Continue to release the clutch until it is fully engaged.
Mistakes: Pressing the accelerator hard before reaching the half-engagement point (causing slippage and wear on the clutch plate) or releasing the clutch too quickly (causing the engine to stall or the vehicle to jolt, impacting the transmission).
When shifting, always fully depress the clutch to ensure power is completely cut off (otherwise, the gears will be forced into engagement, causing a "crackling" sound and damaging the transmission).
Lifting the clutch after a shift is a two-step process: first, quickly release it to the half-engagement point, pause briefly (to allow for a smooth transition of power), then slowly release it completely while simultaneously applying the accelerator (upshifting to add fuel, downshifting to reduce speed).
Prolonged half-engagement: When following a car in traffic or waiting on a hill, if the clutch remains pressed in a half-engagement position, the clutch plate will overheat due to constant friction, potentially reducing its lifespan by half (from 100,000 kilometers to 50,000 kilometers). Recommendation: Shift the clutch into neutral for brief stops and release the clutch; on hills, use a combination of the parking brake and half-engagement position to reduce constant friction.
Coasting with the clutch depressed: Coasting downhill with the clutch depressed loses engine braking (commonly known as "engine braking"), increasing the strain on the brakes. The clutch plate remains disengaged, causing the release bearing to wear due to prolonged stress.
Frequently resting your left foot on the clutch pedal: Inadvertently resting your left foot on the clutch pedal while driving can cause the pressure plate to slightly disengage, leading to semi-engaged clutch plate slippage and increased wear. The correct approach is to completely remove your left foot from the pedal when not shifting gears.
When a clutch problem occurs, the vehicle will emit "signals," and timely intervention can prevent further damage:
Symptoms: Engine rpm surges when the accelerator is pressed, but vehicle speed increases slowly. This is more noticeable when climbing a hill or carrying a heavy load, and you may even smell a burning smell (overheating of the clutch plate).
Causes: The clutch plate is worn too thin (friction material depleted), the pressure plate spring is insufficient, or the release bearing is stuck, preventing the pressure plate from tightening.
Consequences: Wasted power, increased fuel consumption, and, in severe cases, inability to start. Immediately replace the clutch assembly (plate, pressure plate, and release bearing).
Symptoms: Difficulty shifting into gear, a "clicking" sound; slight vehicle jerkiness when releasing the clutch in neutral (incomplete disengagement).
Causes: Insufficient clutch pedal travel, worn release bearing, hydraulic system oil leakage (hydraulic clutch), or aging cable (mechanical clutch).
Treatment: First check pedal free travel (normally 10-15mm). For hydraulic clutches, add brake fluid (common to some models). If this doesn't work, replace the release bearing or cable.
Symptoms: A "scratching" sound when the clutch is depressed (release bearing worn due to lack of oil); a "clicking" sound when the clutch is released (broken pressure plate spring or worn driven plate splines).
Caution: Continued use after abnormal noise occurs may cause component seizure or breakage. It is recommended to have it repaired as soon as possible to avoid road traffic breakdown.
Regular Inspection: During each maintenance session, have a technician check the clutch platethickness (which can be checked through the sight glass) and the condition of the release bearing. Hydraulic clutches should also be checked for fluid leaks.
Avoid Overloading: Prolonged heavy loading of the vehicle will increase clutch load and wear the accelerator plate and pressure plate. It is recommended that the vehicle be operated within 80% of the rated load.
Select the Right Parts: When replacing the clutch kit, prioritize genuine parts or reputable brands (such as LUK or Sachs). Inferior parts have poor quality and a short lifespan, potentially causing failure after 30,000 kilometers.
Break-in of New Parts: After replacing the clutch, avoid sudden acceleration and heavy loading for the first 500 kilometers to ensure a good fit between the new plate and the pressure plate, extending its service life.
The clutch is the "transmission hub" of a manual transmission vehicle. Proper operation and timely maintenance can extend its life. Remember: look for half-clutch when starting, fully depress the shift lever, avoid prolonged half-clutch periods, and promptly have it repaired if slipping or unusual noises occur. Understanding this knowledge can not only improve driving smoothness, but also reduce maintenance costs and make every gear shift "easy".When purchasing parts for a new car or replacing parts, it is also important to choose qualified and high-quality clutch parts.If you are looking for suitable clutch disc or other brake parts,welcome to visit our website:https://www.evfriction.com.If you want to order,you can call us by +86-13363216781,or email us: jessicabrakes12@gmail.com.
