During vehicle operation, the braking system is a critical component ensuring driving safety. When the driver presses the brake pedal, how do key components such asbrake pads, brake discs, and brake shoes work together to convert the vehicle's kinetic energy into thermal energy, thereby achieving smooth braking? This article will provide an in-depth analysis of the operational principles of the automotive braking system and reveal the secrets behind the seamless collaboration of these core components.
The braking system of a vehicle primarily consists of components such as the brake pedal, master cylinder, wheel cylinders, brake pads, brake discs, brake shoes, and brake fluid. These components work together to complete the braking process of the vehicle.
The essence of the braking system's operation is an energy conversion process. When a vehicle is traveling at high speed, it possesses significant kinetic energy. The braking system's task is to convert this kinetic energy into thermal energy through strong friction and dissipate it into the air, thereby slowing the vehicle down until it comes to a stop. This process primarily relies on the close contact and strong friction between friction pairs to achieve.
When the driver needs to slow down or stop, they press the brake pedal. This action is like issuing a “command” that activates the entire braking system. The brake pedal transmits the force applied by the driver to the master cylinder through a series of mechanical connections.
The master cylinder is one of the key components of the braking system. When the brake pedal is pressed, the piston inside the master cylinder moves forward, compressing the brake fluid. Since brake fluid is incompressible, pressure is generated within the fluid under the piston's force, which is then transmitted through the brake lines to the individual wheel cylinders.
Upon receiving pressure from the master cylinder, the piston inside the wheel cylinder moves outward. In a disc brake system, the piston in the wheel cylinder pushes the brake pads, causing them to tightly contact the brake rotor; in a drum brake system, the piston in the wheel cylinder pushes the brake shoes, causing them to contact the inner surface of the brake drum.
When the brake pads come into contact with the brake rotor or the brake shoes come into contact with the inner surface of the brake drum, significant friction is generated. This friction force hinders the rotation of the wheels, thereby causing the vehicle to decelerate or come to a stop. The magnitude of the friction force between the brake pads and brake rotor, or between the brake shoes and brake drum, depends on various factors such as the performance of the friction material, contact area, and pressure magnitude.
Brake pads are components in disc brake systems that come into direct contact with the brake rotor. They are typically composed of friction material, a backing plate, and an adhesive. High-quality brake pads offer excellent friction performance, wear resistance, and high-temperature resistance. When brake pads come into contact with the brake rotor, they convert the vehicle's kinetic energy into thermal energy, thereby achieving braking effect. As usage time increases, brake pads gradually wear down. Once wear reaches a certain level, they must be replaced promptly to ensure the normal operation of the braking system.

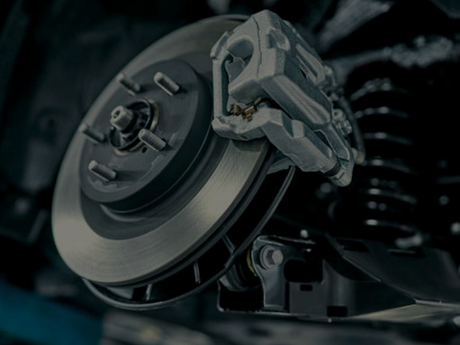

The brake disc is another critical component of the disc brake system. It is typically made of materials such as cast iron or aluminum alloy. The surface of the brake disc must remain flat and smooth to ensure proper contact with the brake pads. During braking, the brake disc is subjected to significant friction and heat, so it must have excellent heat dissipation properties. Some high-performance brake discs also feature vented or drilled designs to enhance heat dissipation efficiency and reduce the occurrence of heat fade.

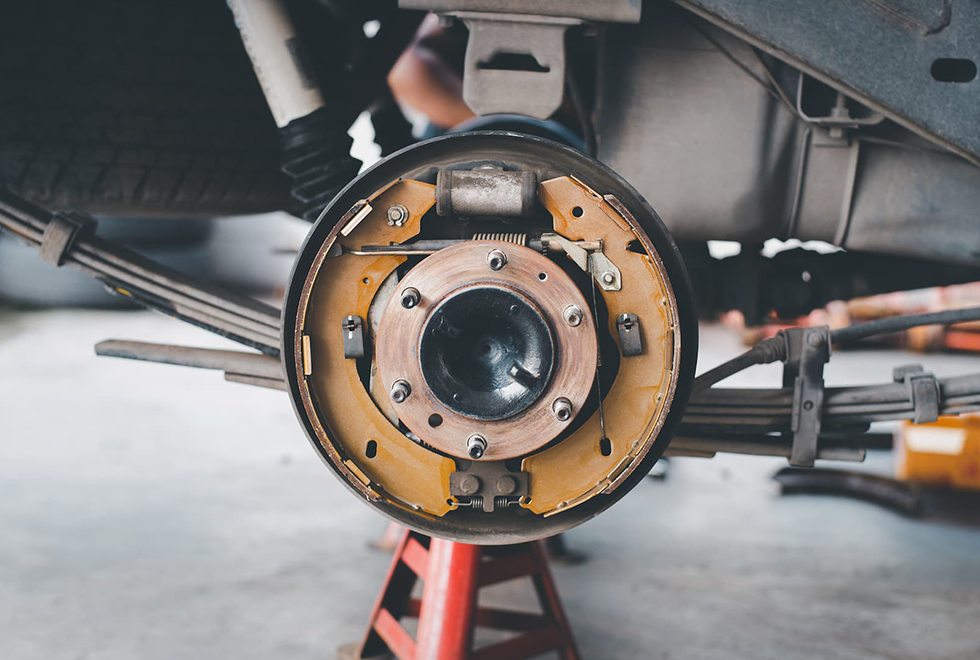

Brake shoes are an important component of drum brake systems. They typically consist of friction linings and shoe brackets. Brake shoes are installed inside the brake drum. When the brake caliper pushes the brake shoes, they spread outward and come into contact with the inner wall of the brake drum, generating friction to achieve braking effect. The friction linings of brake shoes also wear out with use and require regular inspection and replacement.
The proper functioning of the braking system is critical to driving safety. Therefore, vehicle owners should pay attention to the following during daily driving:
Regular inspections: Inspect the thickness and wear condition of the brake pads every 5,000 kilometers, and inspect the wear condition of the brake shoes every 30,000 kilometers.
Timely replacement: Replace brake pads when their thickness is less than 3 millimeters, and replace brake shoes when their friction material wear is below 3 millimeters.
Use high-quality parts: When replacing brake pads or brake shoes, it is recommended to use original equipment manufacturer (OEM) parts or parts that meet the vehicle's specifications to ensure optimal braking performance and safety.
Pay attention to driving habits: Avoid frequent emergency braking to reduce excessive wear on the braking system.
In summary, the automotive braking system is a complex and sophisticated system that achieves deceleration and stopping of the vehicle through the coordinated operation of multiple components. Understanding the operating principles of the braking system, as well as the functions of components such as brake pads, brake discs, and brake shoes, can help vehicle owners better maintain and care for their vehicles, ensuring driving safety. If you have any needs for automotive braking system products, please feel free to contact us by +86-13363216781 at any time or you can visit our website directly:https://www.evfriction.com. We will provide you with high-quality products and professional services.
